The upper open bonnet is standard on tubular pumps.The upper part is connected with the sucker rod string, the lower part is connected with the plunger, and the traveling valve is placed in it.Material selection and structural strength are the key factors in product design.In order to strengthen the protection of the valve hood, there are alloy lined valve hood designed for thermal production and high flushing oil Wells.There is a rubber lined valve cover designed for cold production and high stroke oil Wells.

Rod, Stationary Thin Wall Barrel, Top Cup Anchor Pump

Seat plugs are standard on the plunger of a pump. For jacking traveling seat.

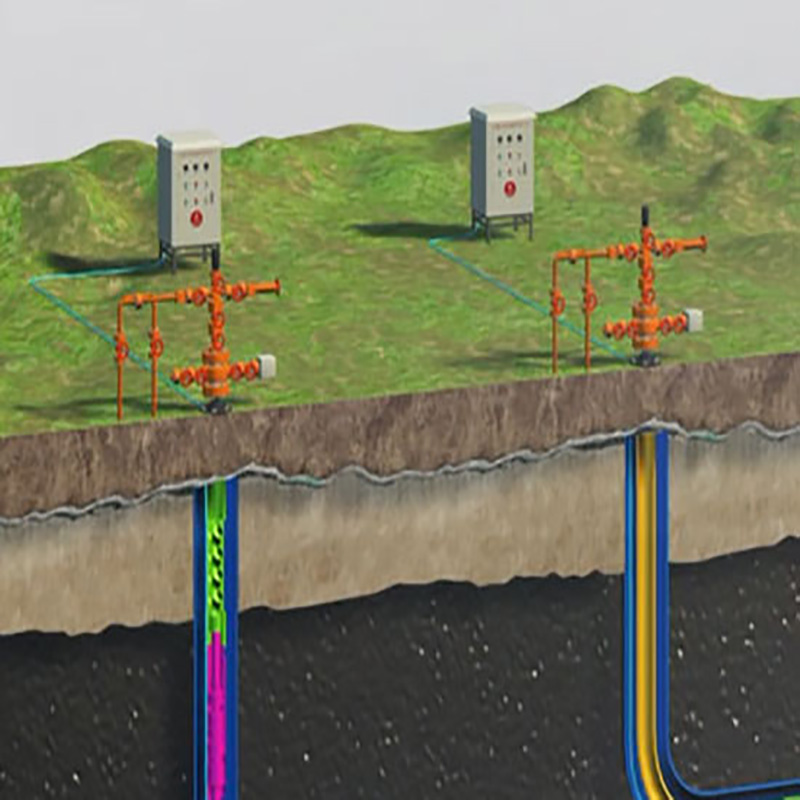

Hydraulic drive oil production system includes: control cabinet, hydraulic control device, liquid transmission pipe, hydraulic drive propeller and plunger pump.

The large diameter pump designed and developed by Weima is to design the oversized pump for a given casing size well. The outer diameter of the plunger shall be larger than the inner hole of the tubing.

The hydraulic feedback pump designed by our company can exploit crude oil with viscosity ＞ 4000mpa*s.

The stem reducer joint is a standard part of the sucker rod pump and connects the upper stem of the plunger to the rod string.The connecting part with the valve stem is the key to the structure of the product. The more likely problem to occur is the breaking off of the connecting valve stem.Therefore, its material’s selection and structural strength’s design need to fully consider the product’s operating environment.

The eccentric pump designed by our company can exploit crude oil with viscosity＞4000mpa*s.

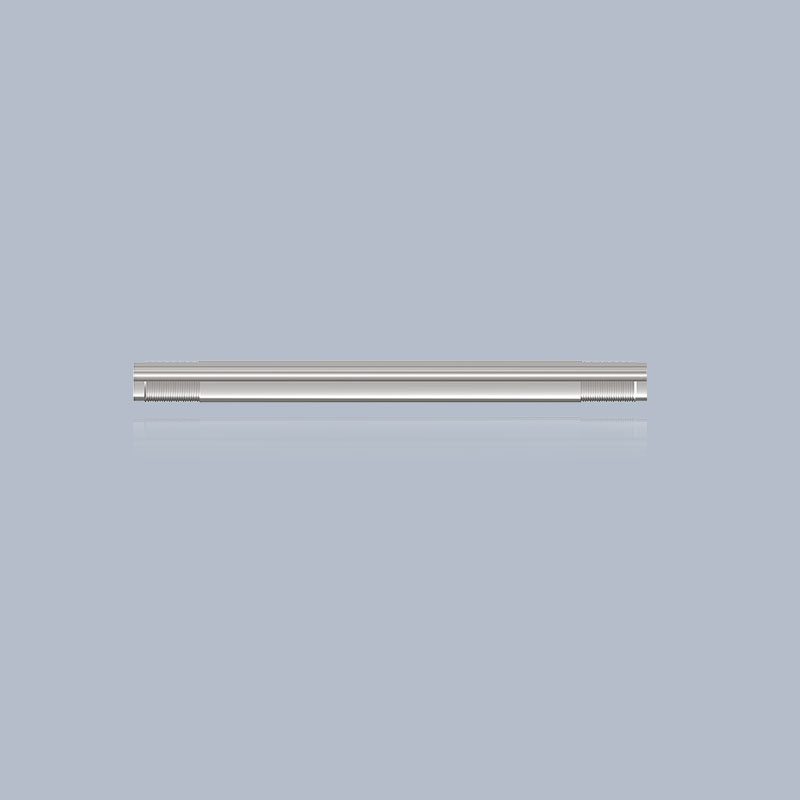

The drawpipe is a standard part of the moving bobbin pump.Material selection is seamless steel tube, the surface can be chrome plated or other anticorrosive hardening treatment.

The Double Sealed Rod Pump designed and developed by Weima applies the combination of mechanical seal and cup seal .

Double Acting Pump is used for well with high reservoir pressure and sufficient liquid supply, especially those where conventional pumps cannot meet the displacement requirements.

The pump anchor designed and developed by Weima is used to let the rod pump seal in the tubing, not use the conventional seating any more. It can also be used in oil wells that must constantly adjust the pump setting depth of rod pump as the supply level changes to improve production efficiency.

Rod, Stationary Thin Wall Barrel, Top Mechanical Anchor Pump

The leather bowl support connector is connected to the tubing pump hanger design position. The length is going to be 6 in length. Up to 14 inches.

Hydraulic station produces hydraulic oil with high pressure, drive the hydraulic cylinder operation through the hydraulic pipe line

The ground device has a simple structure and is easy to install, and can be directly connected with the wellhead casing four-way, and covers small area.

Stem guide sleeves are standard on rod pumps.Used for righting valve stem.

Double Acting Pump designed and developed by Weima is used for well with high reservoir pressure and sufficient liquid supply, especially those where conventional pumps cannot meet the displacement requirements.

Standard part of a rod type pump used to connect the plunger to the rod string.
